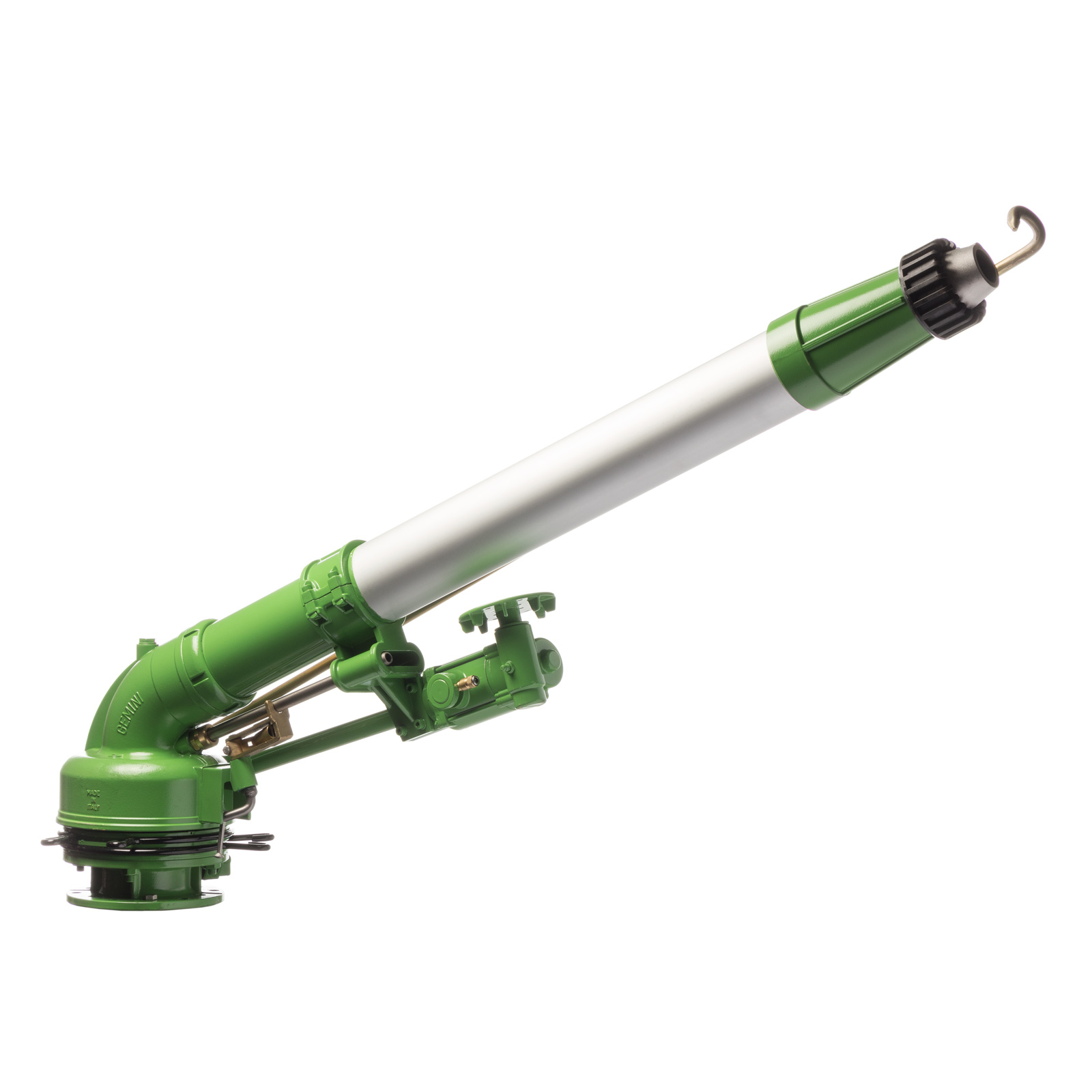

Gemini

PRODUCT CODE: 10524

Inlet:  Flange
Flow (L/min):  1082 – 4481
Throw (m):  51 – 90
Angle:  25°
Operation:  Full or Part Circle
Drive Mechanism:  Turbine / Gear Drive
Nozzles included (mm): 32, 34*, 36 (*fitted)
Additional nozzles available (mm): 28 – 50

DESCRIPTION: Large flow sprinkler for high pressure systems, rotating at uniform speed over a full or part circle. It is equipped with interchangeable nozzles of different diameters and an adjustable jet-breaker, which allows even distribution of rainfall over the irrigated area. It is the ideal sprinkler for irrigation of extensive cultivations. Equipped with a special change of gears, allowing two speeds – a high speed for tender cultivations or a slow speed for normal cultivations.

TECHNICAL: Gemini Technical Specifications & Parts List
