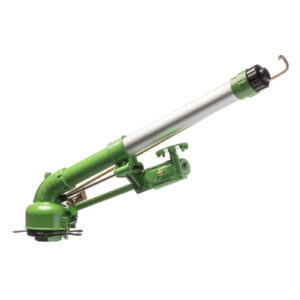

Mariner

PRODUCT CODE: 10165 (long barrel, slow speed)
PRODUCT CODE: 10165SB (short barrel, fast speed)

Inlet: 2 ½” BSPF
Flow (L/min): 343 – 1872
Throw (m): 27 – 64
Angle: 25°
Operation: Full or Part Circle
Drive Mechanism: Turbine / Gear Drive
Nozzles included (mm): 28, 30*, 32 (*fitted)
Additional nozzles available (mm): 12 – 40 straight; 18 – 34 flip

DESCRIPTION: Large flow sprinkler for high pressure systems, rotating at uniform speed over a full or part circle. It is equipped with interchangeable nozzles of different diameters and an adjustable jet-breaker, which allows even distribution of rainfall over the irrigated area. This is the ideal raingun for irrigation of extensive cultivations.

TECHNICAL:
Mariner Spec Sheet
Mariner Parts List
