Inlet: 1 ½” BSPF
Flow (L/min): 102 – 496
Throw (m): 20 – 35
Angle: 23°
Operation: Full or Part Circle
Drive Mechanism: Turbine / Gear Drive
Nozzles included (mm): 10, 12*, 14, 16 (*fitted)
Additional nozzles available (mm): 8 – 18

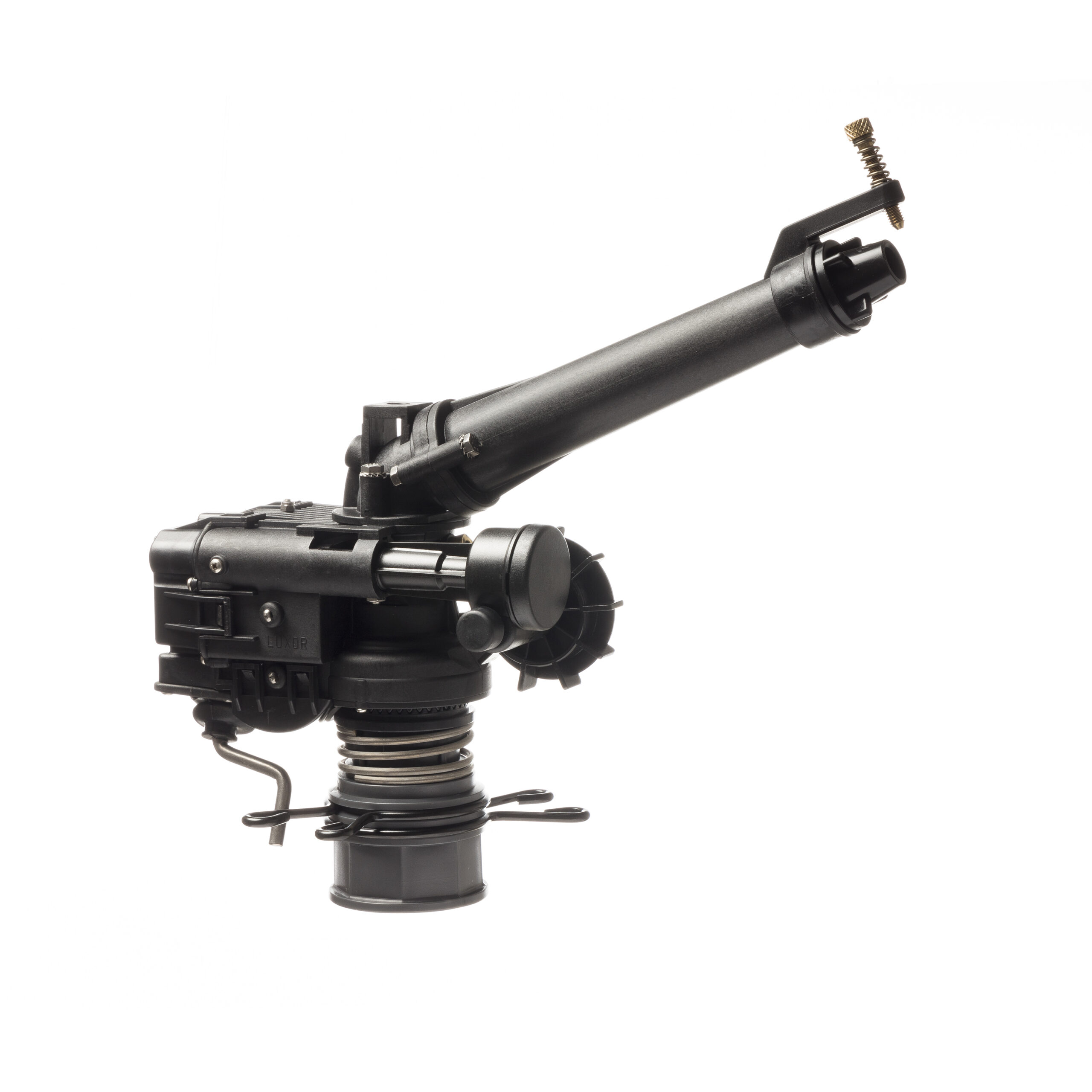

DESCRIPTION: Medium and small flow sprinkler for medium pressure systems, rotating at uniform speed over a full or part circle. It is equipped with interchangeable nozzles of different size and an adjustable jet-breaker, providing a uniform distribution of rainfall over the irrigated area. The evenness and lightness of watering make it particularly suitable for the irrigation of delicate crops, including seedings, flowers and vegetables.

TECHNICAL: Luxor Technical Specifications & Parts List
