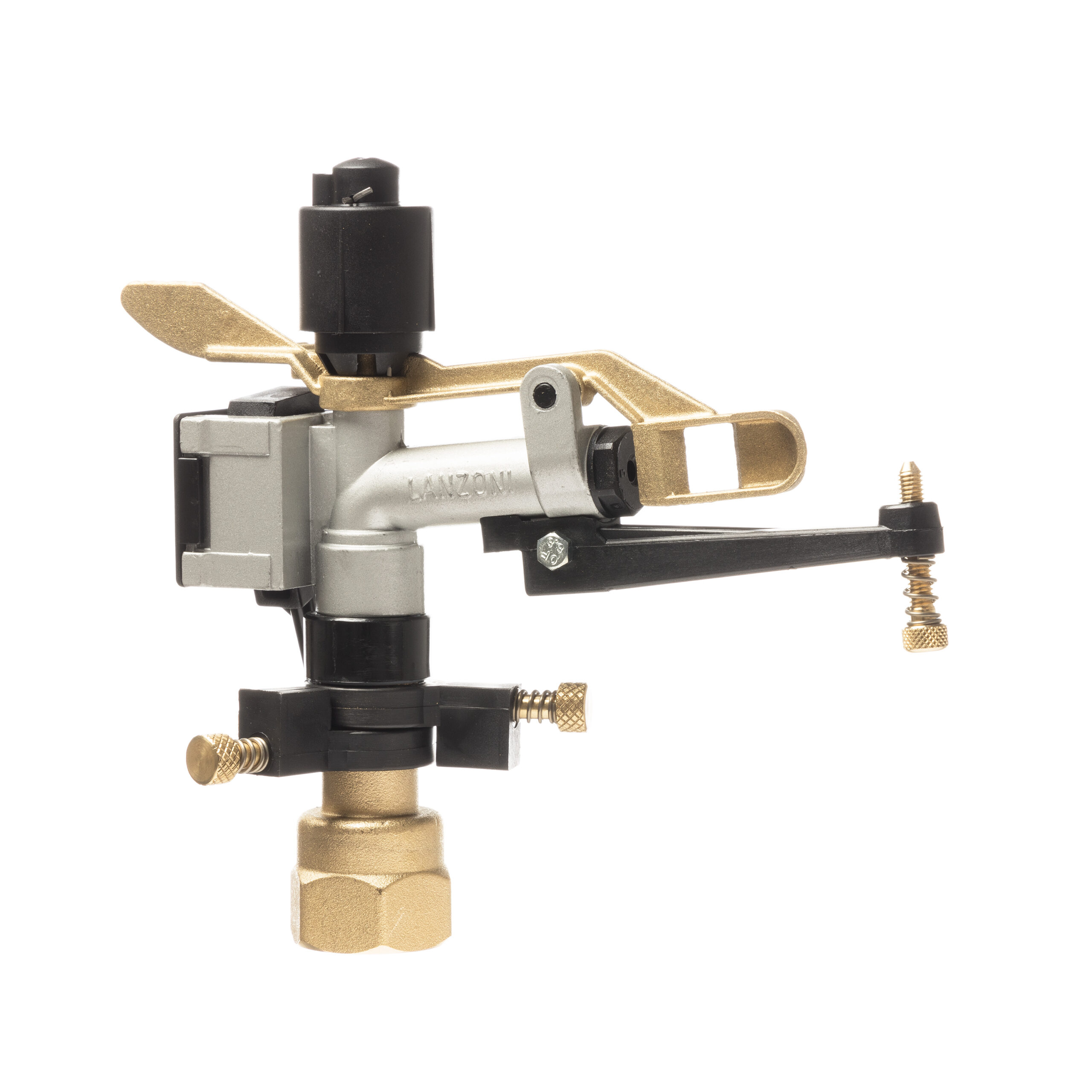

Jumbo Teso 6°

PRODUCT CODE: 10028

Inlet: 1″ BSPF
Flow (L/min): 20 – 60
Throw (m): 8 – 12
Angle:
Operation: Part Circle
Drive Mechanism: Spring Arm Impact
Nozzles included (mm): 5*, 6 (*fitted)
Additional nozzles available (mm): 4 – 7

DESCRIPTION: Small flow sprinkler made of brass, aluminium and rilsan, it is available in part circle operation. It is equipped with interchangeable nozzles and an adjustable jet-breaker. Due to its low angle it is recommended for under tree irrigation of orchards and vineyards, for the watering of nursery or greenhouse cultivations, and in high wind areas.

TECHNICAL: Jumbo Teso Technical Specifications & Parts List
