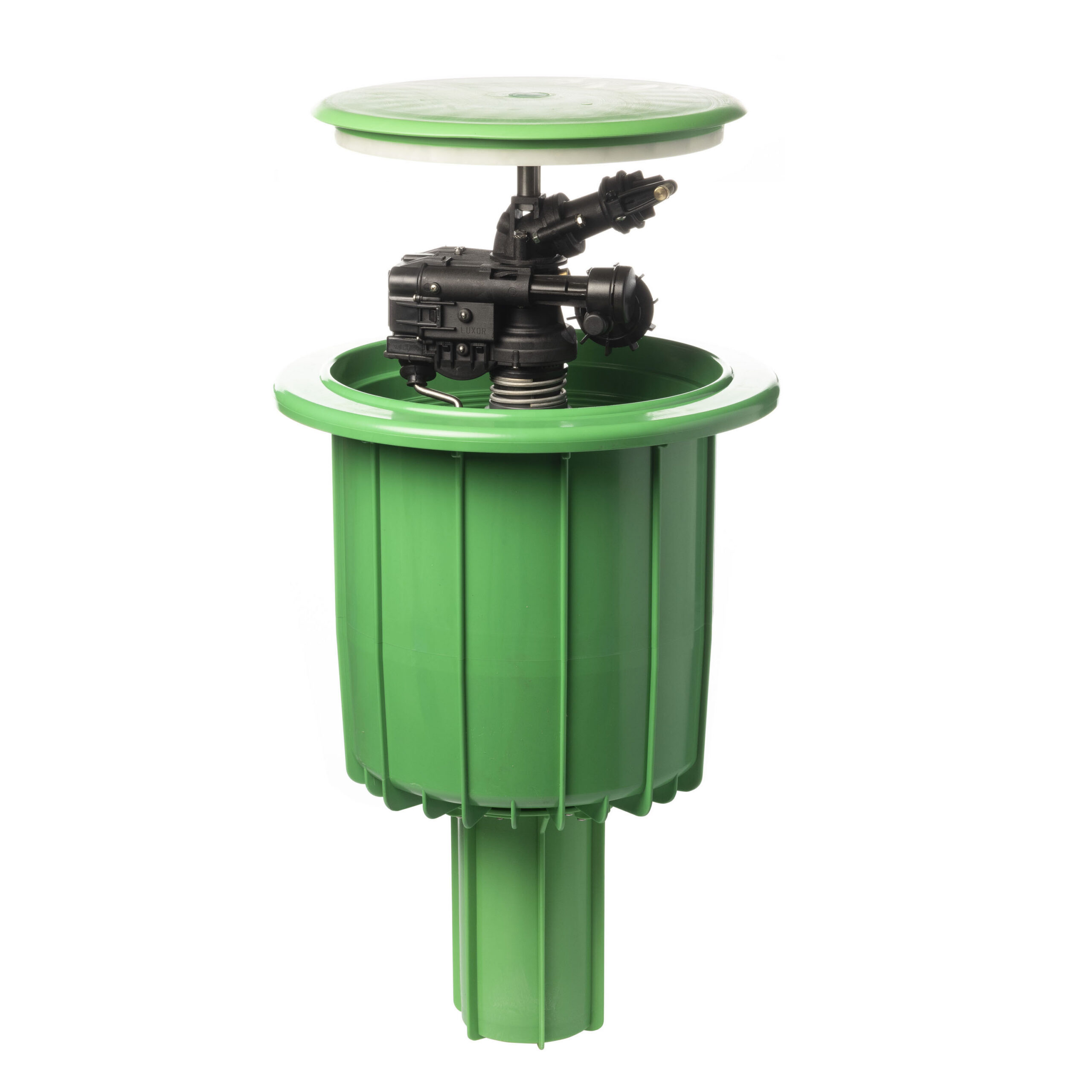

Sportgun

Underground pop-up with turbine gun for medium to long radius applications

PRODUCT CODE: 10442

Inlet: 1 ½” BSPF
Flow (L/min): 102 – 496
Throw (m): 20 – 36
Angle: 23°
Operation: Full or Part Circle
Drive Mechanism: Turbine / Gear Drive
Nozzles included (mm): 14, 16*, 18 (*fitted)
Additional nozzles available (mm): 6 – 18

DESCRIPTION: Almost invisible on standby, these sprinklers are only lifted during operation. Ideal for irrigating and cooling sports fields. The continuous rotation provided by the gears allows perfect irrigation even in a single span. Adjustable rotation speed and irrigation arc from 40 – 360 degrees. Internal parts made of brass and stainless steel for excellent reliability and long-lasting durability.

TECHNICAL:
Sportgun Spec Sheet
Sportgun Parts List
