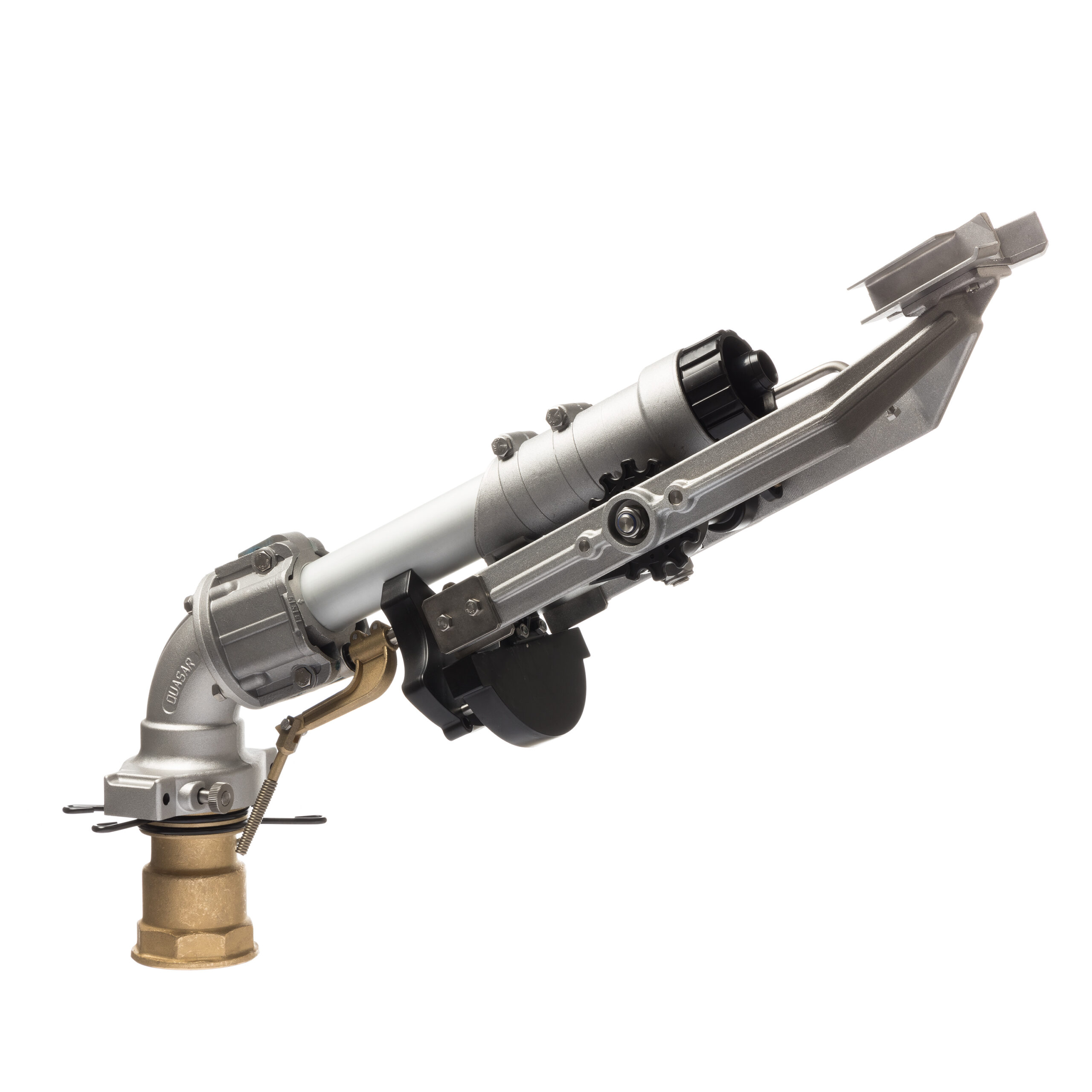

Quasar 15° – 27°

PRODUCT CODE: 10381

Inlet: 2 ½” BSPF
Flow (L/min): 110 – 882
Throw (m): 22 – 51
Angle: 15° – 27°
Operation: Full or Part Circle
Drive Mechanism: Spring Arm Impact
Nozzles included (mm): 16, 18*, 20, 22, 24 (*fitted)
Additional nozzles available (mm): 12 – 40

DESCRIPTION: Medium flow sprinkler with variable jet-angle, rotating at full or part circle with slow return. Suitable for travelling irrigators or normal installations, particularly in areas with strong winds, sloping terrain, fields with low overhead powerlines, and application of fertilizer.

TECHNICAL: Quasar Technical Specifications & Parts List
