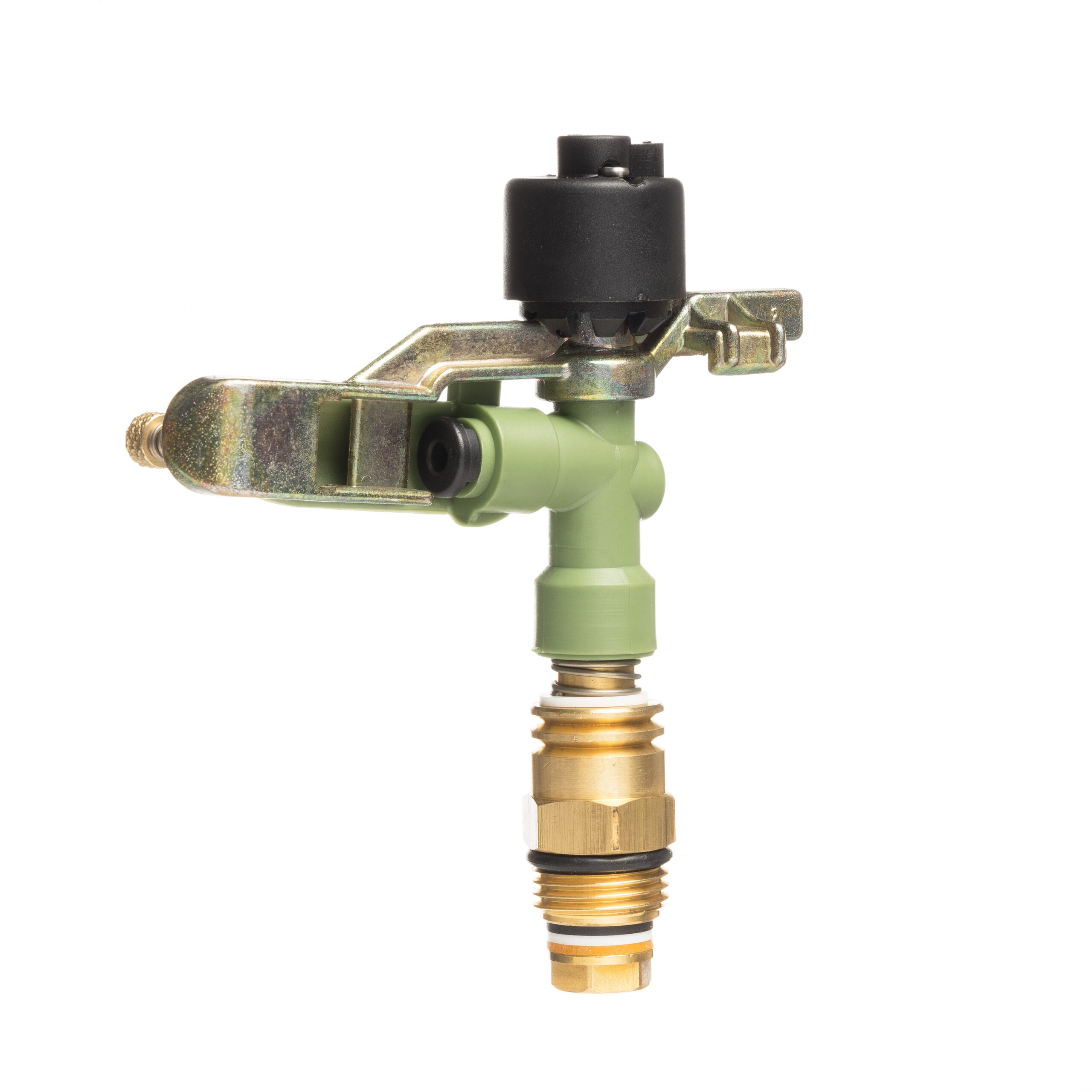

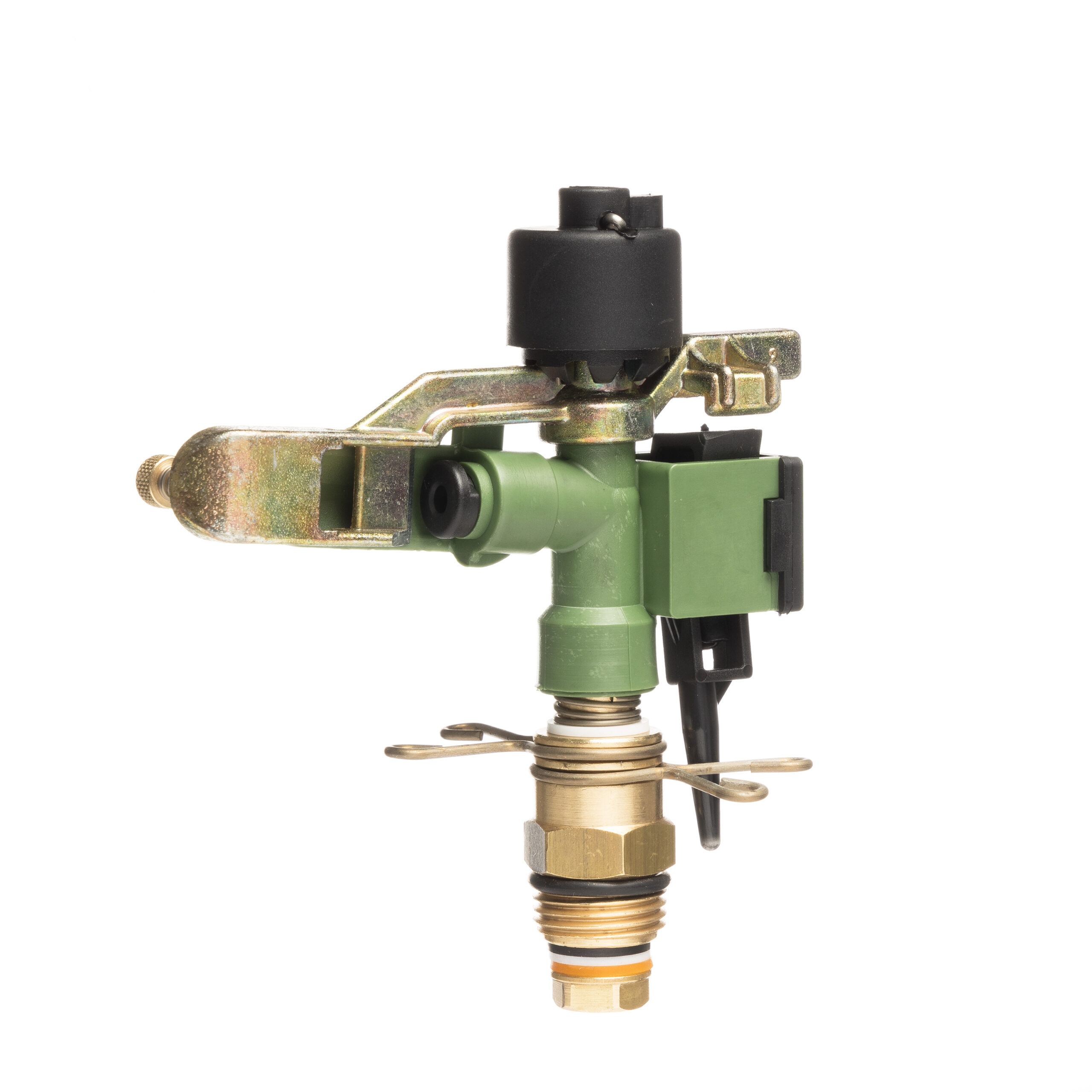

Junior Teso 4°

PRODUCT CODE: 10031 FC; 10032 PC

Inlet: ½ ” BSPM
Flow (L/min): 9 – 15
Throw (m): 5 – 8
Angle: 4°
Operation: Part Circle or Full Circle
Drive Mechanism: Spring Arm Impact
Nozzles included (mm): 4

DESCRIPTION: Small flow sprinkler made of brass, aluminium and rilsan providing corrosion resistance. Available in full circle and part circle and equipped with an adjustable jet-breaker. Due to its low angle it is recommended for under tree irrigation of orchards and vineyards, irrigation of greenhouse cultivations, and in high wind areas.

TECHNICAL: Junior Teso Technical Specifications & Parts List
