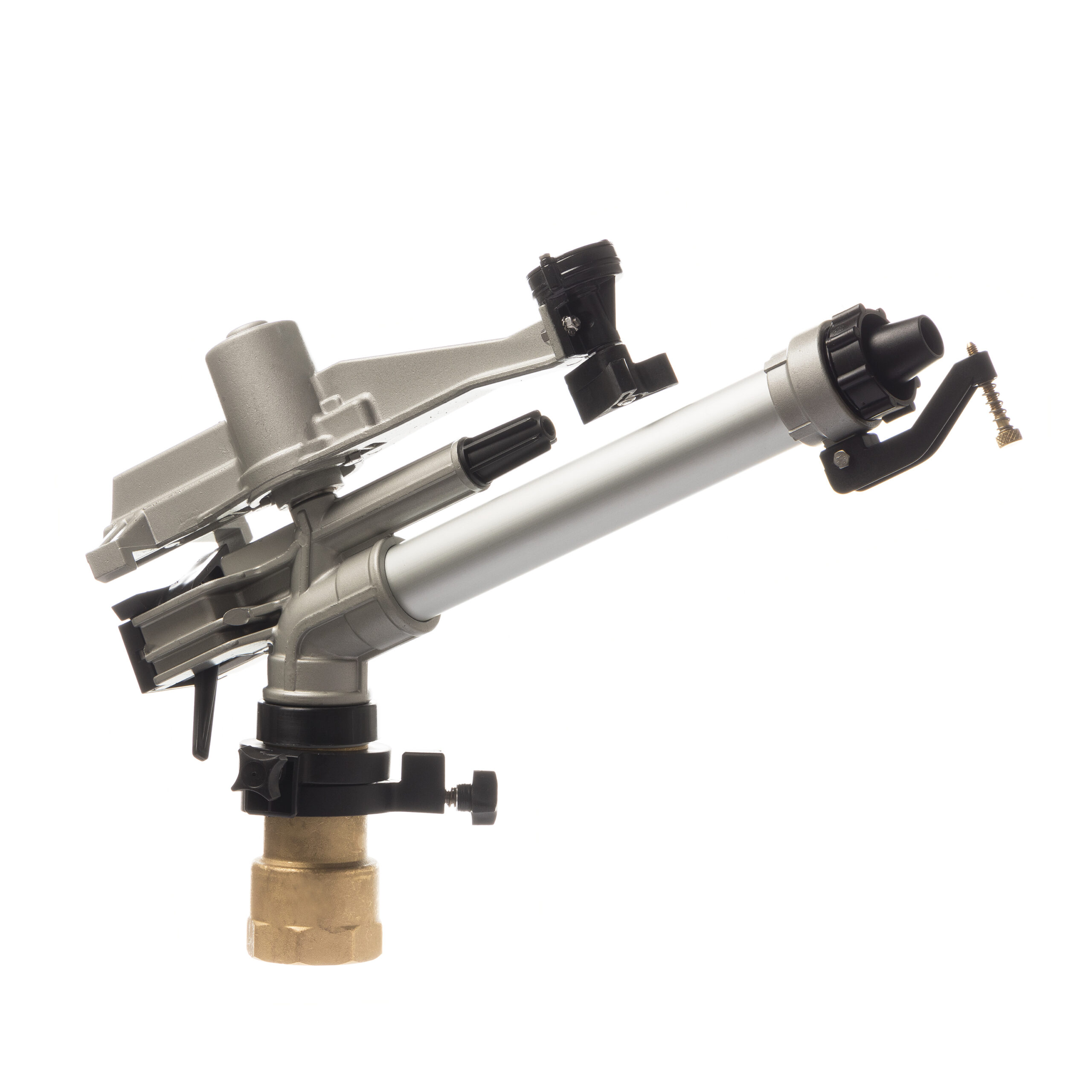

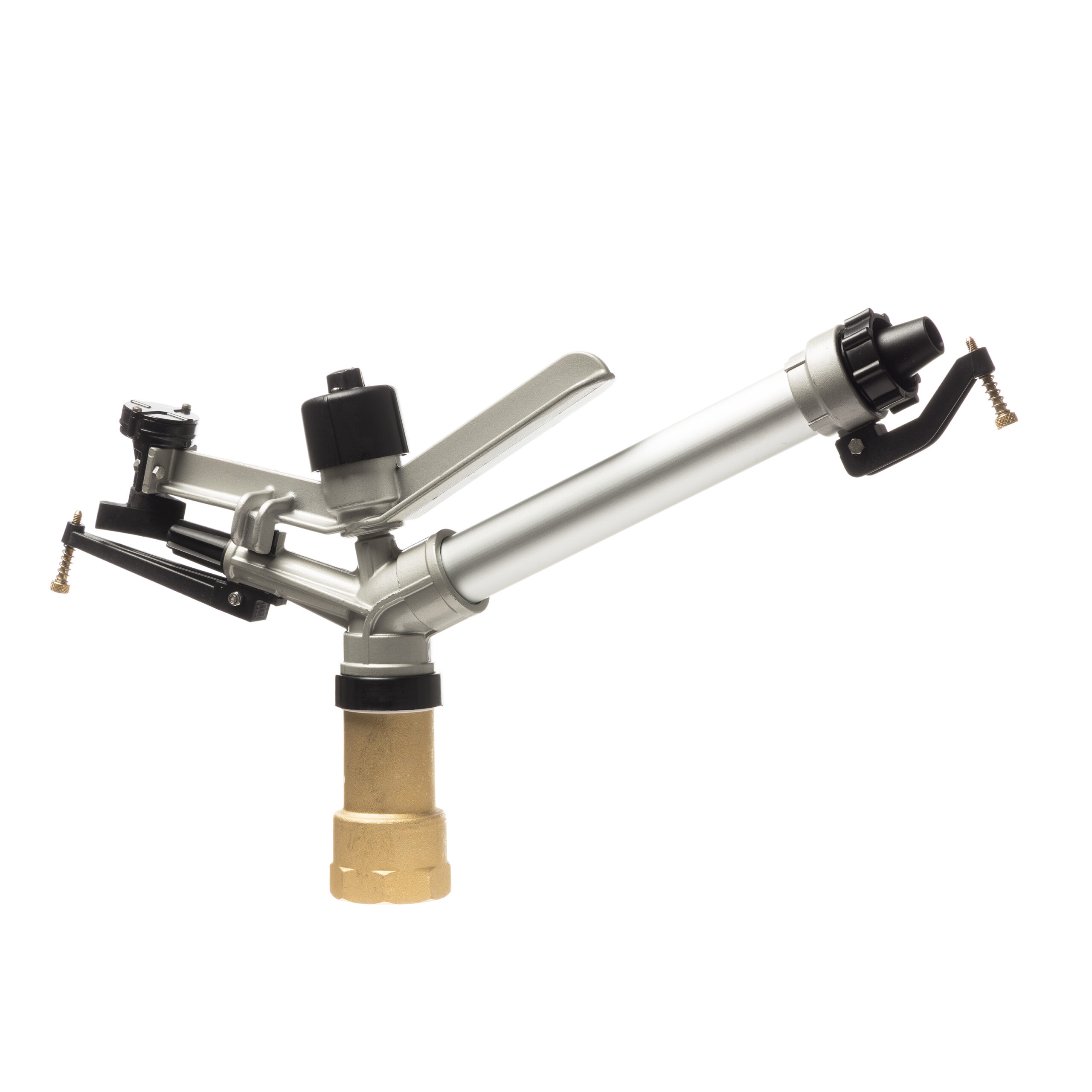

Duplex

PRODUCT CODE: 10137 PC; 10158 FC

Inlet: 2″ BSPF
Flow (L/min): 159 – 839
Throw (m): 20 – 46
Angle: 25°
Operation: Part Circle or Full Circle
Drive Mechanism: Spring Arm Impact
Nozzles included (mm): 12, 14, 16*, 18, 20 (*fitted)
Additional nozzles available (mm): 10 – 28

DESCRIPTION: Medium flow sprinkler with full circle or part circle operation. It is equipped with different interchangeable nozzles and an adjustable jet-breaker providing a uniform distribution of water over the irrigated area. Simple and versatile, this sprinkler is suitable for multiple applications including any type of land and extended cultivations.

TECHNICAL: Duplex Technical Specifications (Part Circle); Duplex Technical Specifications (Full Circle)
